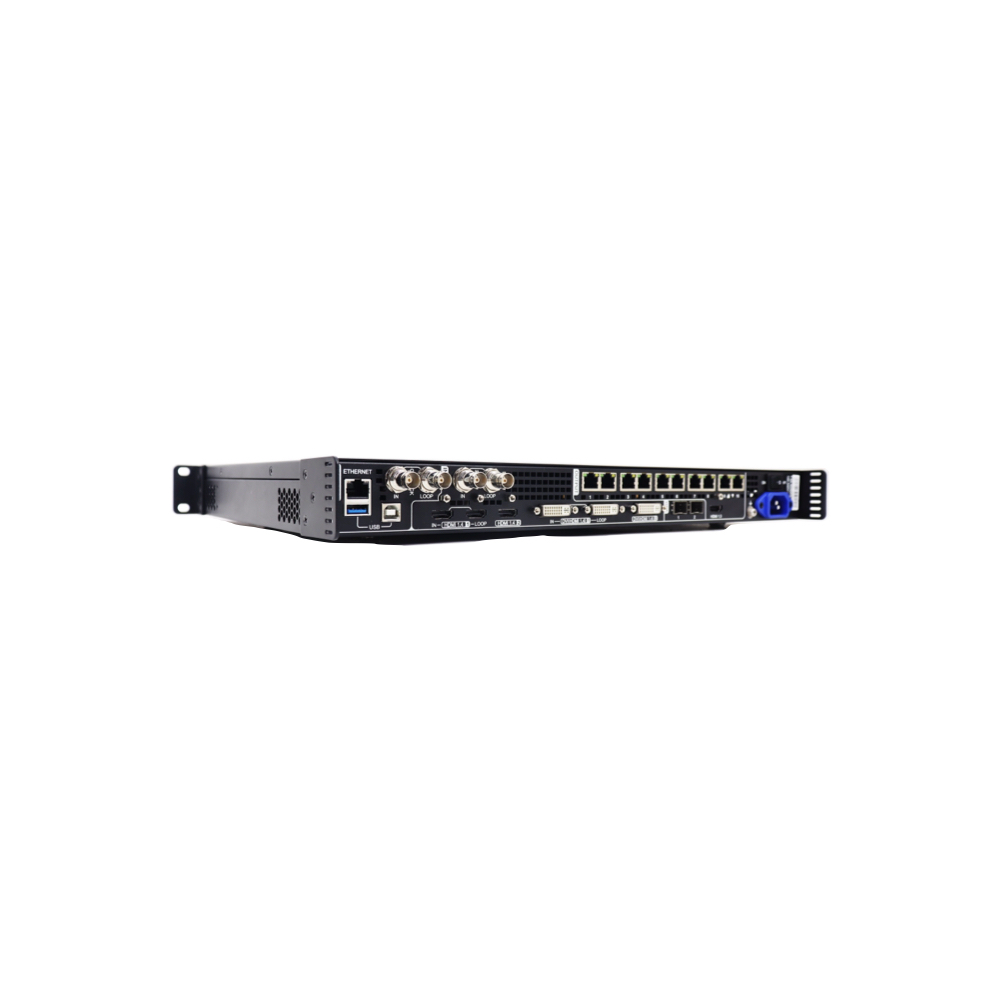

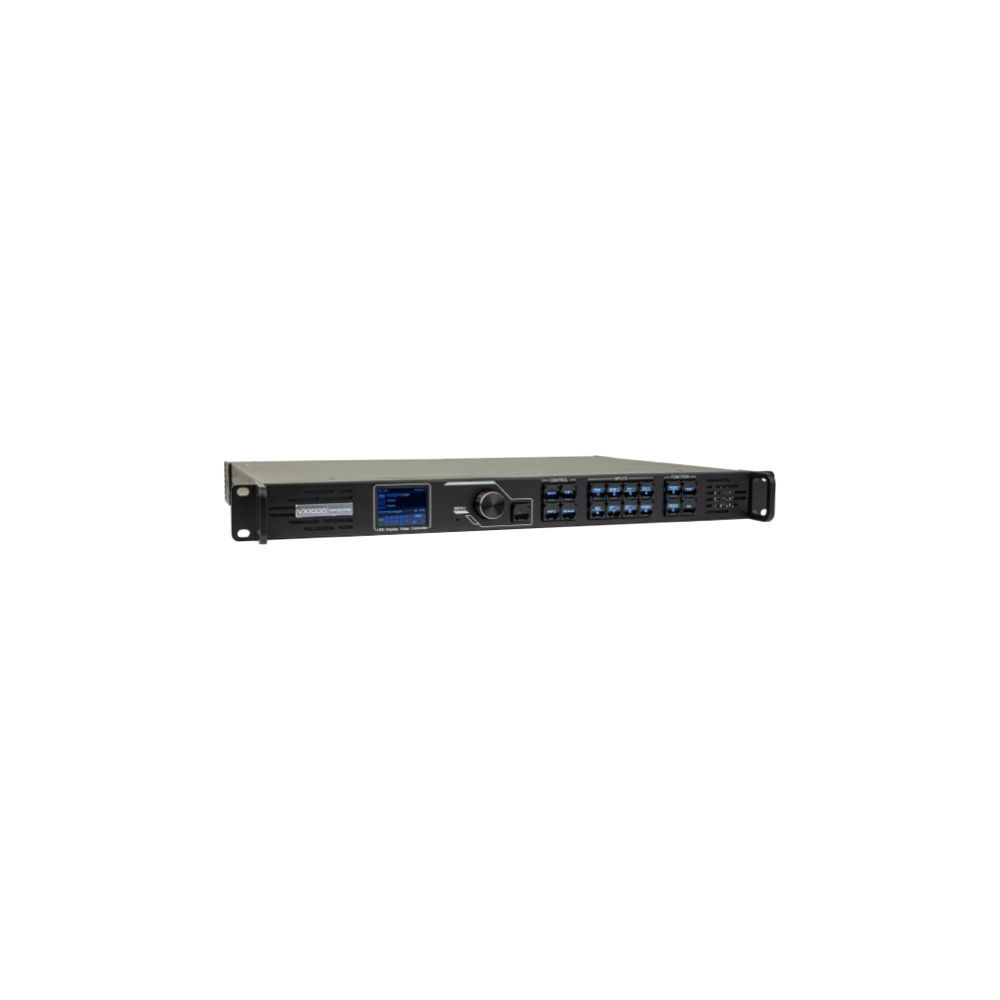

Use the VX1000 when one unit needs to process live video and send data to a larger LED wall. Its ten Gigabit Ethernet outputs provide up to 6.5 million pixels of loading capacity, with HDMI, DVI and SDI source connections.
Choosing the NovaStar VX1000 6.5M-Pixel
Plan each Ethernet output as well as the total canvas. Count the pixels in every cabinet and check the selected refresh rate and bit depth before assigning ports. For fiber distribution, confirm the optical configuration at both ends and whether a backup path is needed.
Does a 6.5-million-pixel rating describe the input resolution?
No. LED loading capacity and source-input resolution are different limits. Check both the video source format and the output-port loading plan for your installation.
Compare equipment for your project
NovaStar VX600 6-Port All-in-One LED Controller · NovaStar VX400 4-Port All-in-One LED Controller
Send the screen resolution, cabinet or module model, quantity and intended source connections to BSPoo sales support for a configuration check.
NovaStar Documents & Downloads
Specifications
User Manual
Release Notes
Check the document model, version and hardware revision before use. Archived versions are retained with their original version numbers.
